Tutorial: Dr Pan Teaches Teaches TFT LCD Displays

Dr Pan:Welcome to DISPLAY Museum. I am Dr Pan, the curator of Museum.

Greg: Hello, Dr Pan. I am Greg. I came here to learn about TFT LCD Display Module.

Dr Pan: Hello, Greg. TFT LCD module is one of the best LCD technology. We can simply consider it as TFT+LCD+LED backlight, and monochrome LCD module consists of LCD+LED backlight. An image on an LCD we can see is composed of pixels. TFT is the abbreviation for thin film transistor and it controls the R, G, B colors of each pixel respectively on the surface of LCD.

If we compare it with OLED, TFT LCD has several advantages below.

  1. It has a longer serving time: 50 thousand hours.
  2. Higher brightness, higher contrast rate, and more vivid color.
  3. The size is bigger and the price is much cheaper since it is a very mature technology.

Even though TFT LCD still dominates the markets now, the shortcomings are quite obvious: higher power consumption, thicker and narrow view angle.

OLED is not mature enough to replace TFT LCD, but it will be very likely in the future since it has many advantages.

TFT LCD is a high standard product and it is not well customized as monochrome LCD. But still,  it has a variety of options to meet the customers’ requirements.

  1. The sizes range from 1.44 inch to 130.0 inch;
  2. The various resolutions rage from 128*128 to 4k;
  3. Available interfaces include MCU, RGB, SPI and LVDS;
  4. Touch screen options. Touch screen options are available in resistive and capacitive technology.

It has been widely used in our everyday life. It includes industrial control, coffee machine, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.

Greg: Thank you, Dr Pan. Now I got it.

Dr Pan: Welcome to contact us if you have any questions.

Custom TFT LCD Display With Touch Panel Manufacturer

TFT Display modules with Capacitive Touch Screen are more user-friendly and have better performance compared with the ones with Resistive Touch Screen. There are many combinations of TFT display modules with projected capacitive touchscreen (PCAP) for you to choose from. The resistive structure is sensed by pressure so there is no limitation of contacting forms. Resistive touch screens work smoothly even using a pen or with gloves.  TFT display with resistive touch screen can be used on consumer electrical products, such as POS system, security system, control monitors and GPS devices.We offer modules with various features including modules with control board, wide viewing angle, sunlight readable, wide temperature, and Monochrome. The available sizes are 0.96″, 3.5″, 3.9″, 4.3″, 5″, 5.2″ 5.7″, 7″,  10.1″, 13.3 to 23.8″.

ITEM DIMENSION UNIT
Size (Diagonal)
3.5
inch
Dot Matrix / Resolution
480 × RGB × 320 (TFT)
dots
Module Dimension
56.34x98.00
mm
Active Area
48.96x73.44
mm
LCD Driver IC
ILI9488
Module interface
4-wire SPI interface
Touch
MSP3520
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
10.1
inch
Dot Matrix / Resolution
1920 × RGB × 1200 (TFT)
dots
Module Dimension
229.45(H)*149.22(V)*4.7(typ)
mm
Module Interface
LVDS
Active Area
216.8064(H)*135.504(V)
mm
Dot / Pixel Pitch
0.03764(H) x RGB x 0.11292(V)
mm
Brightness
600
cd/㎡
Operating Temperature
-20~+70
°C
CTP Driver IC
HY4635

ITEM DIMENSION UNIT
Size (Diagonal)
2.1
inch
Dot Matrix / Resolution
480 × RGB × 480 (TFT)
dots
Module Dimension
75.0(H) ×74.49 (W) × 5.19
mm
Active Area
53.28*53.28
mm
LCD Driver IC
ST7701S
CTP Driver IC
ATMXT308U
LCD Interface
RGB18-bit+SPI
CTP Interface
IIC
Operating Temperature
-20~+70
°C

ITEM DIMENSION UNIT
Size (Diagonal)
3.2
inch
Dot Matrix / Resolution
240 × RGB × 320 (TFT)
dots
Module Dimension
55.0*77.2*3.9
mm
Active Area
48.60X64.80
mm
LCD Driver IC
ILI9341
Module Interface
8/16 bits parallel/MCU
Touch
Analog 4-Wire Resistive Touch Screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
7.0
inch
Dot Matrix / Resolution
1200 × RGB × 1920 (TFT)
dots
Module Dimension
97.3 (W) xl59.4(H)x2.2(D)
mm
Module Interface
MIPI
Active Area
94.5(W) x 151.2(H)
mm
Dot / Pixel Pitch
0.07875(W) x 0.07875(H)
mm
Brightness
500
cd/㎡
Operating Temperature
-20~+70
°C
CTP Driver IC
GT911

ITEM DIMENSION UNIT
Size (Diagonal)
10.1
inch
Dot Matrix / Resolution
1280 × RGB × 800 (TFT)
dots
Module Dimension
229.2*149.8*2.50
mm
Active Area
216.96*135.6
mm
Module Interface
LVDS
FPC
40 PIN
Brightness
350/600/1000
Nits
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
7.0
inch
Dot Matrix / Resolution
1024 × RGB × 600 (TFT)
dots
Module Dimension
170.3(W) × 103.8 (H) × 20.15
mm
Active Area
154.2144 × 85.92
mm
Brightness
450
cd/㎡
Module Interface
RS232/TTL
Touch
Analog 4-Wire Resistive Touch Screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
12.1
inch
Dot Matrix / Resolution
1280 × RGB × 800 (TFT)
dots
Module Dimension
277.7 (H) x 180.6(V)
mm
Active Area
261.12(H) x 163.20 (V)
mm
Module Interface
LVDS
Surface Treatment
AG25
Brightness
500
cd/㎡
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
3.92
inch
Dot Matrix / Resolution
320 × RGB × 320 (TFT)
dots
Module Dimension
76.72X74.86X3.33
mm
Active Area
71.13X69.82
mm
Module Interface
SPI/RGB /MCU
Driver IC
ILI9488
Touch
capacitive touch screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
5.0
inch
Dot Matrix / Resolution
1080 × RGB × 1920 (TFT)
dots
Module Dimension
63.72x117.25x1.58
mm
Active Area
61.88x110.02
mm
Brightness
1000
cd/㎡
Module Interface
MIPI
LCD Driver IC
HX8399-C
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
2.95
inch
Dot Matrix / Resolution
360 × RGB × 640 (TFT)
dots
Module Dimension
40.94 x 74.38x 2.24
mm
Active Area
35.72*65.28
mm
Module Interface
RGB 24 ibt
LCD Driver IC
ST7701S
Brightness
350
cd/㎡
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT

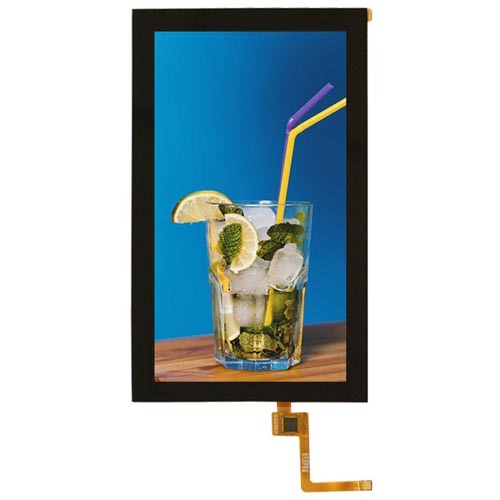

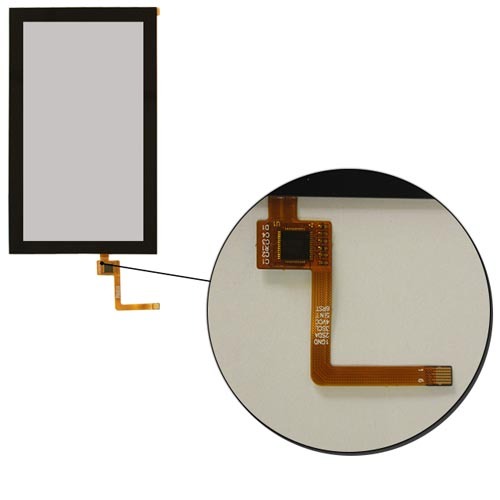

Size (Diagonal)
5.94
inch
Dot Matrix / Resolution
720 × RGB × 1280 (TFT)
dots
Module Dimension
76.75x140.28x1.66
mm
Active Area
73.98x131.52
mm
Module Interface
MIPI 4-channel
Driver IC
ST7703
Touch
capacitive touch screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
5.0
inch
Dot Matrix / Resolution
800 × RGB × 400 (TFT)
dots
Module Dimension
136.1*84. 2
mm
Active Area
111.9x63.9
mm
Brightness
350
cd/㎡
Module Interface
3/4-wire SPI
Touch
resistive/capacitive touch screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
2.4
inch
Dot Matrix / Resolution
320 × RGB × 240 (TFT)
dots
Module Dimension
42.72*77.18
mm
Active Area
36.72*48.96
mm
Module Interface
4-wire SPI interface
LCD Driver IC
ILI9341
Touch
Analog 4-Wire Resistive Touch Screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
13.3
inch
Dot Matrix / Resolution
1920 × RGB × 1080 (TFT)
dots
Module Dimension
310.6*182.2*13.07
mm
Active Area
293.76*165.24
mm
Module Interface
LVDS/USB
Driver IC
ILI2511
FPC
30 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

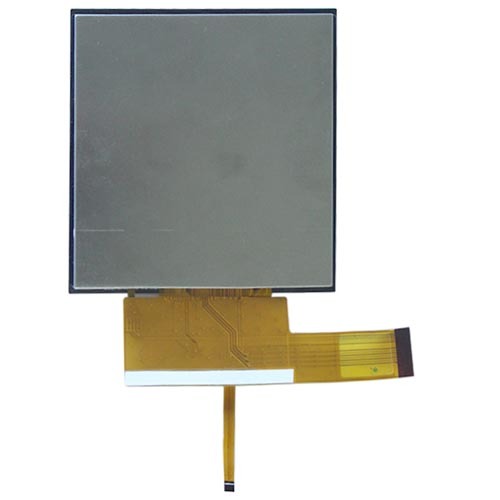

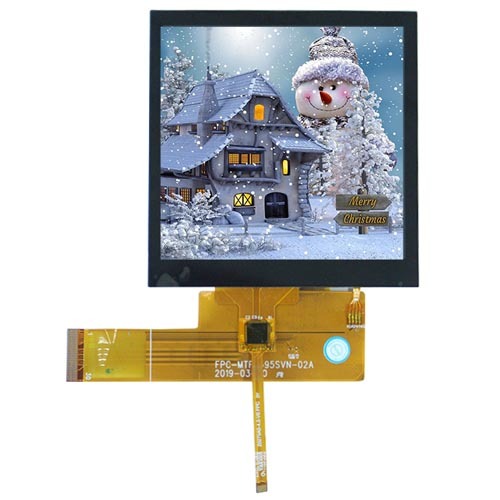

ITEM DIMENSION UNIT
Size (Diagonal)
3.95
inch
Dot Matrix / Resolution
480 × RGB × 480 (TFT)
dots
Module Dimension
80.20*83.81*4.08
mm
Active Area
71.86*70.18
mm
Module Interface
MIPI/I2C
LCD Driver IC
GT917S/ST7701S
Touch
capacitive touch screen
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
5.0
inch
Dot Matrix / Resolution
800 × RGB × 480 (TFT)
dots
Module Dimension
128.20*84.12*4.80
mm
Active Area
108.00*64.80
mm
Module Interface
RGB
LCD Driver IC
GT911
FPC
40 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
5.0
inch
Dot Matrix / Resolution
480 × RGB × 854 (TFT)
dots
Module Dimension
131.4*65.3*3.7
mm
Active Area
109.65*61.63
mm
Module Interface
MIPI/I2C
Driver IC
GSL3670/ILI980E
FPC
40 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
12.1
inch
Dot Matrix / Resolution
1280 × RGB × 800 (TFT)
dots
Module Dimension
277.70*180.60*12.2
mm
Active Area
261.12*163.20
mm
Module Interface
LVDS/USB
LCD Driver IC
ILI2511
FPC
40 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
9.7
inch
Dot Matrix / Resolution
1024× RGB × 768 (TFT)
dots
Module Dimension
209.51*163.55*2.6
mm
Active Area
196.61(H)*147.46(W)
mm
Module Interface
LVDS
LCD Driver IC
GT911
FPC
30 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
13.3
inch
Dot Matrix / Resolution
1920 × RGB × 1080 (TFT)
dots
Module Dimension
335.00*203.20*4.88
mm
Active Area
293.76*165.24
mm
Module Interface
EDP/USB
Driver IC
ILI2511
FPC
30 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
5.5
inch
Dot Matrix / Resolution
720 × RGB × 1280 (TFT)
dots
Module Dimension
83.84*136.76*2.8
mm
Active Area
67.93*120.77
mm
Module Interface
4 LINE MIPI
LCD Driver IC
ST7703
Touch Driver IC
GT911
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
7.0
inch
Dot Matrix / Resolution
800 × RGB × 1280 (TFT)
dots
Module Dimension
97.35x162.03x2.3
mm
Active Area
94.2x150.7
mm
Module Interface
MIPI
LCD Driver IC
GT911
FPC
40 PIN
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C

ITEM DIMENSION UNIT
Size (Diagonal)
3.4
inch
Dot Matrix / Resolution
800 × RGB × 800 (TFT)
dots
Module Dimension
99.00*96.6*3.98
mm
Active Area
87.6*87.6
mm
Module Interface
MCU/MIPI 3 lane
LCD Driver IC
ILI19881C
CTP Driver IC
HX8526-E30
Operating Temperature
-20~+70
°C
Storage Temperature
-30~+80
°C
Quick Quote

Why Work With Us

No more endlessly wasting your valuable time on lousy design monochrome LCD screens. DISPLAYBLY’s goal is to let you sit back and relax. Our consultant will keep you informed of the production progress throughout and we take care of all the hard works, including trade stuff, clearance, and logistics, etc.

  • You don’t have to be bothered to focus on the technical details since we are the experts.
  • You don’t have to care about the time difference since we offer 24/7 service.
  • You won’t have trouble designing the products by yourself since we can make the design for you for free.
  • You don’t have to worry about the samples since we will make the prototypes for you until you are satisfied for one-time payment.
  • You don’t have to concern about the quality since we have the best quality control system.
  • You don’t have to be anxious about the lead time since we are always ready and provide the best service on time.

Experienced Team

More than 10 years experience professional engineer team.

High Capacity

More than 10 production lines and can provide 50 thousand pieces of LCD module per day.

Modern Technology

The world’s leading technology and complete sets of imported production equipments.

Strict Quality Control

Implement ISO9001 quality control system to make high-quality standard products.

A Few Steps of LCD Module Production Process

There are more than 30 steps for the production process of LCD module and here only a few typical production steps are displayed.

ITO Glass Washing

Full Automation IC Bonding Machine

Pressing ACF

Gluing IC

Soldering FPC

High Temperature De-bubble Machine

Full Automation PIN Assembly Machine

Full Automation LCD Assembly Machine

Testing LCD Module

Lean More About Us

New Custom LCD Display Design Development

01 Communication

To start, you have to elaborate on your specific demands. It is best if you can offer your drawings. From our experience, many of our customers only have a concept in their mind and they ask for a quote or samples directly. This is not how it works. Sometimes a video conference or a face-face conference is necessary before we can fully understand your requirements. It usually involves a lot of questions, such as: 1. What is the application of the products ? 2. What is the timeline you’re working from? 3. What problem do we expect us to solve for you?

02 Design

After the first step, we both have some basic understandings . We pass some projects which are not suitable for us. And we can move on the next step: design. To better service our customers and save both of us some time, we will ask you to fill in some of our online forms. Online form custom LCD module. This is the basic information we have to acquire. If you are not certain about some parameters of custom LCD module, we will make the most reasonable design for you from engineering prospect.

03 Quote

Once the preliminary drawings are approved, we offer an official quotation which includes the unit prices, the tooling fees and the other details. Submit the payment if you are happy with the prices. If you can’t accept the prices, we can go back to step two. we can make it cheaper by simplifying the design. After we receive the payment, we will start to make the official drawings. It usually takes 1 to 3 days.

04 Prototypes

At this stage, we build samples based on tooling orders to justify proof of the concept. We can’t start the prototype process unless you sign on the official drawings. It usually takes 7 to 25 days to finish the samples base on the difficulties.

05 Validation

You as the customer validate the efficacy of the custom design before we agree to move into the larger production. It is normal to make several times of prototypes. One time tooling fee and no extra cost until you are satisfied.

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@displaybly.com”.

Production Videos

Are you still wondering how we produce  COG LCD module, COB LCD module, LCD module hybrid structure, LED backlight module, etc? Check the assembly process videos below and you will find your answers.

A Review of Assembly Process of LCD Module Hybrid Structure with Membrane Switch Button
A Review of Assembly Process of LCD Module Hybrid Structure with LEDs on the PCB
A Review of Assembly Process of COB LCD Module for Fueling Equipment
Learn More

One-Stop Display Solution Provider,

Free Samples Available.

Company

Products

Connect

Facebook-f Linkedin Skype Youtube

Jasa PBN https://blogs.ac.id Web Download Software

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@displayman.com”.
